Place of Origin : Guangdong, China
Brand Name : Puhui
Price : Reconsideration
Model Number : PH602
Certification : ISO,CE
MOQ : 1
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 500 Sets/month
Delivery Time : 3-15 days
Packaging Details : Wooden Box
Print Name : Dtf Printer Machine
Machine Size and Weight : 1498*750*1453mm 127KG
Key Selling Points : Wireless, UV Drying, Multi Color, Digital, Long Service Life, Low Noise Level, Automatic, Sustainable, PORTABLE, Low Maintenance Cost, Large Format, Easy to Operate, High Productivity, High Safety Level, High-accuracy, Multifunctional
Print Width : ≤60cm
Print Color : CMYK+White(wwww)
RIP Software : Flexi / RIIN
Operating System : Win7,win10,win11
Printing Accuracy : 720*1200/720*1800/720*2400 dpi
PH602 Features:
1. 2 EPSON i3200-A1*2 print heads
2. Support CMYK+white printing
3. Roll-to-roll 60cm printing width
4. Durable Hoson board
5. Ink shortage alarm
6. White ink circulation stirring
7. Automatic vacuum suction table
8. Front and rear preheating plates
PH602 Printer Uses:
Can be used to print designs on a variety of materials, including textiles such as T-shirts, hoodies, bags, jeans, hats, etc.
Direct to film printer can produce high-quality prints with multiple colors, gradients, and photographic images. In addition, DTF printing is a relatively fast and cost-effective printing method suitable for small and medium-sized businesses or print-on-demand services.
DTF printing is that it allows printing on dark fabrics or substrates without the use of a base layer that is usually required for traditional screen printing or direct-to-garment (DTG) printing.
Print head: | EPSON i3200-A1*2 |
Print width: | ≤60cm |
RIP software: | RIIN |
Print color: | CMYK+White |
Recommended speed: | 8PASS 7.5m²/h |
Printing media: | Pet film |
Temperature & Humidity: | 15 - 30℃ & 35-65% |
Electrical parameters: | 220V, 3.6A, 0.8KW |
Operating system: | Win7,Win10,Win11 |
Printing accuracy: | 720*1200 / 720*1800 / 720*2400 dpi |
Machine size and weight: | 1498*750*1453mm 127KG |
Packaging size and weight: | 1600*1000*711mm 171KG |
Training:
Training is included, we will implement 1 to 1 video service and machine installation.
Fumes:
Please note that fume extraction is essential when using vibrators/dryers. Due to the hazardous nature of fumes, DTF printing and hot pressing should be carried out in a well-ventilated area, or please use a fume purifier.
Powder Handling:
Inhalation and skin contact of uncured powder adhesive may present a health risk. Wear appropriate respiratory protection and gloves when handling powder.
DTF technology:
DTF printing technology is to print the pattern on a PET film coated with a release agent through a DTF printer connected to a computer. The machine will automatically sprinkle a layer of hot melt powder on the printed pattern. Cut the PET film with the pattern, transfer the pattern to clothes, hats, pants, backpacks or other items with the help of a laminating machine, tear off the waste film, and get the pattern cloth.
![]() |

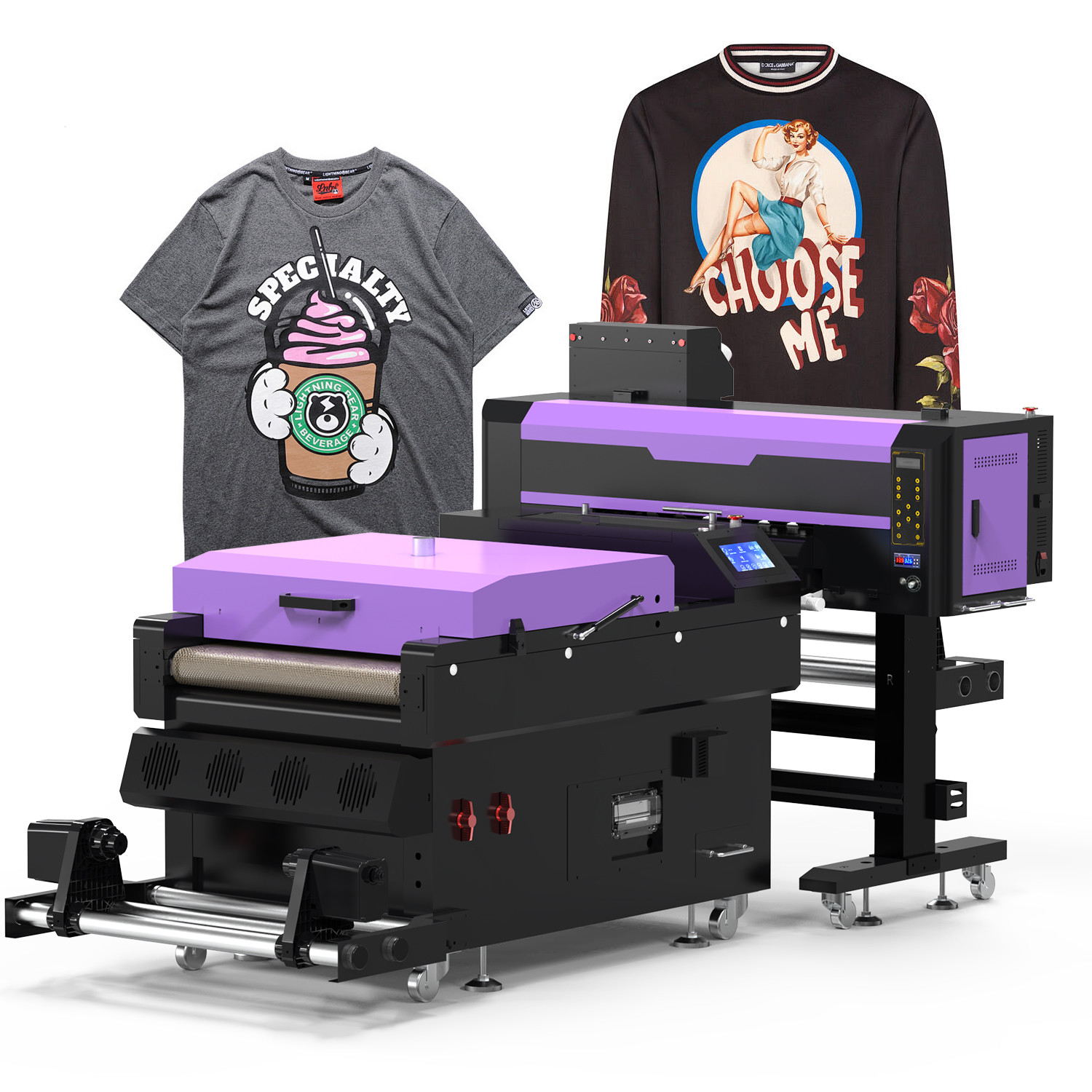

DTF Tshirt Printer Machine 60cm Dual I3200 Print Heads For Bag Images |
